2005-2023 Tacoma Rear Shock Relocation Towers 2.5 x 12" to 14" Mid Travel

2005-2023 Tacoma Rear Shock Relocation Towers 2.5 x 12" to 14" Mid Travel

Regular price $580.00 USD
Regular price Sale price $580.00 USD
Sale Sold out
Shipping calculated at checkout.

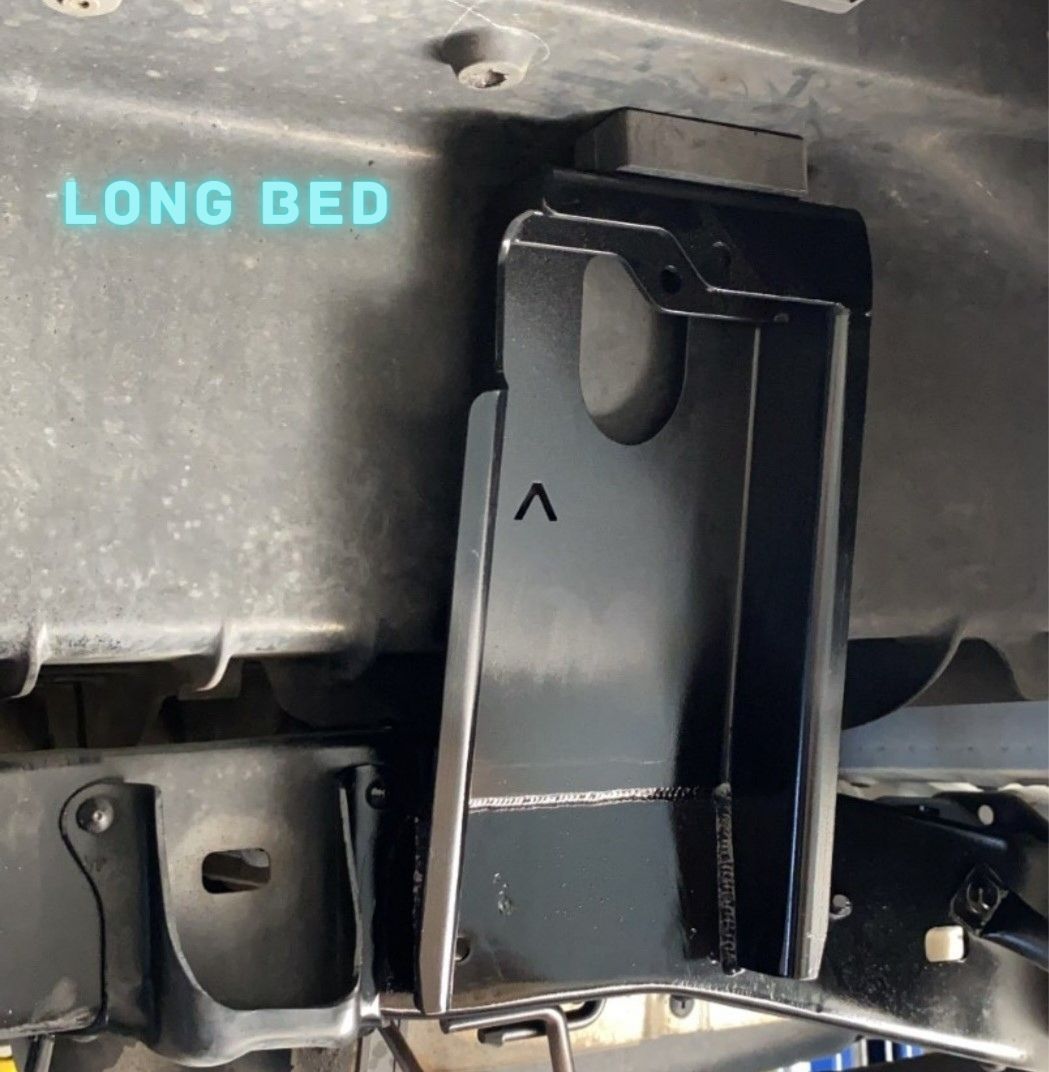

Select Bed Length

Low stock

Lead Time: 7 day

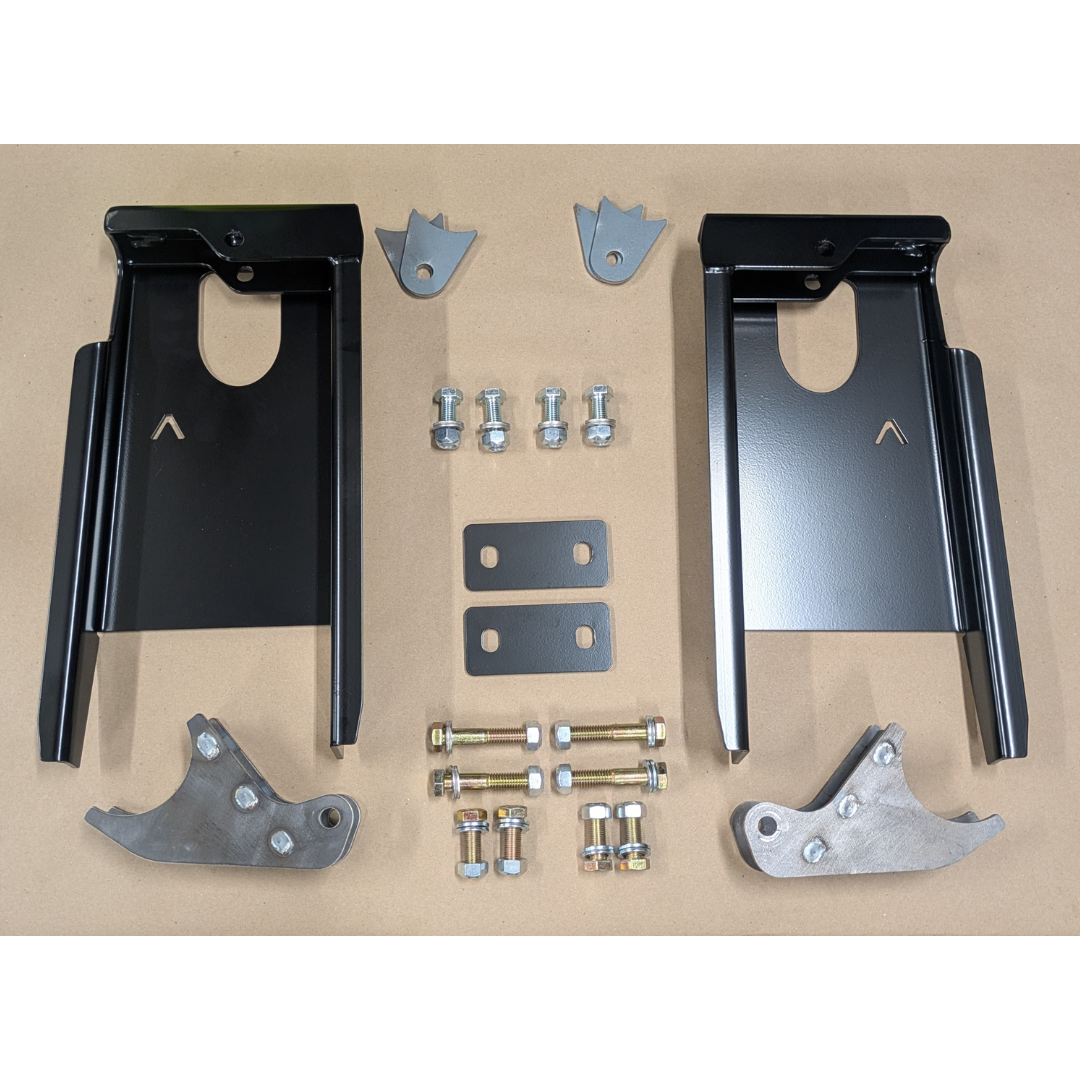

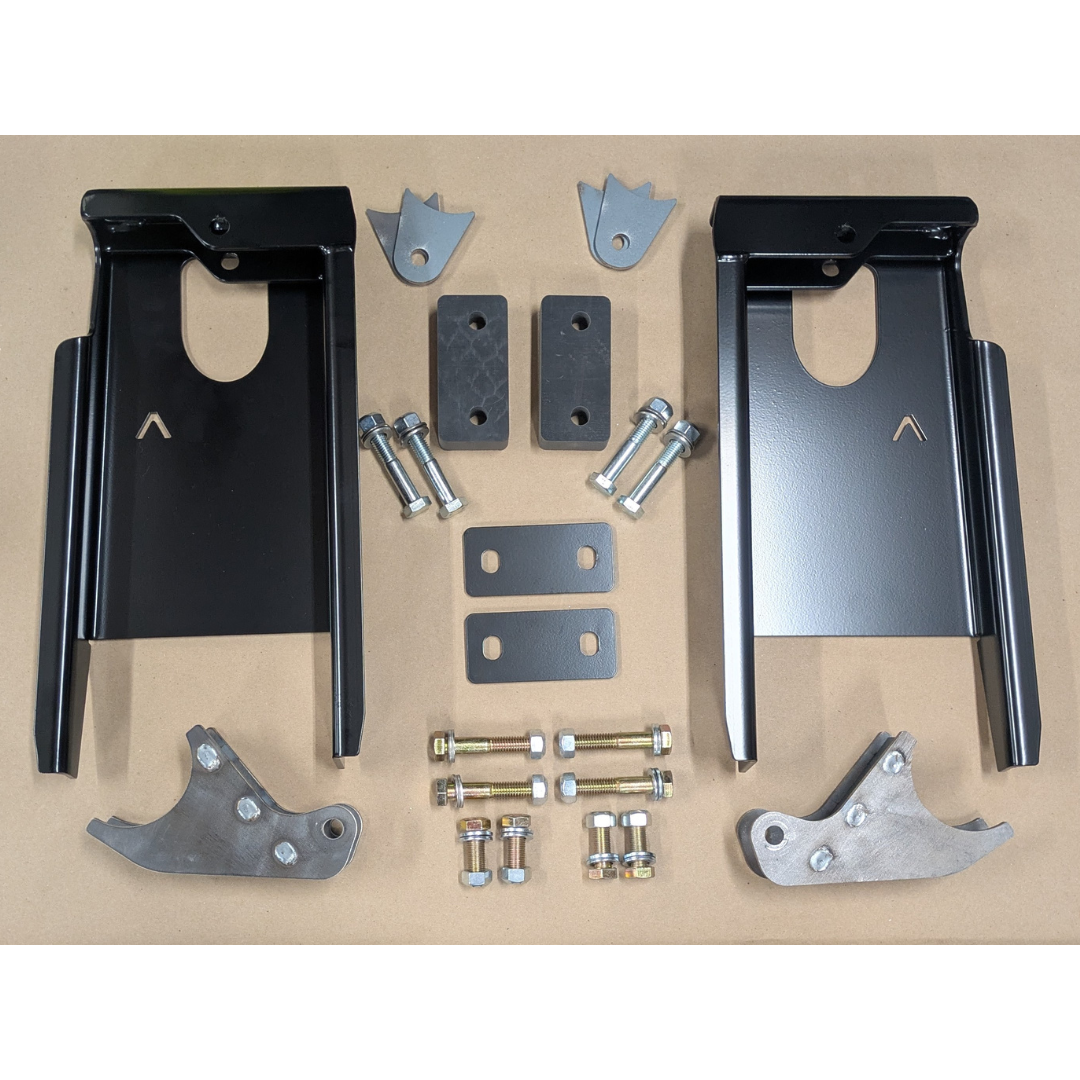

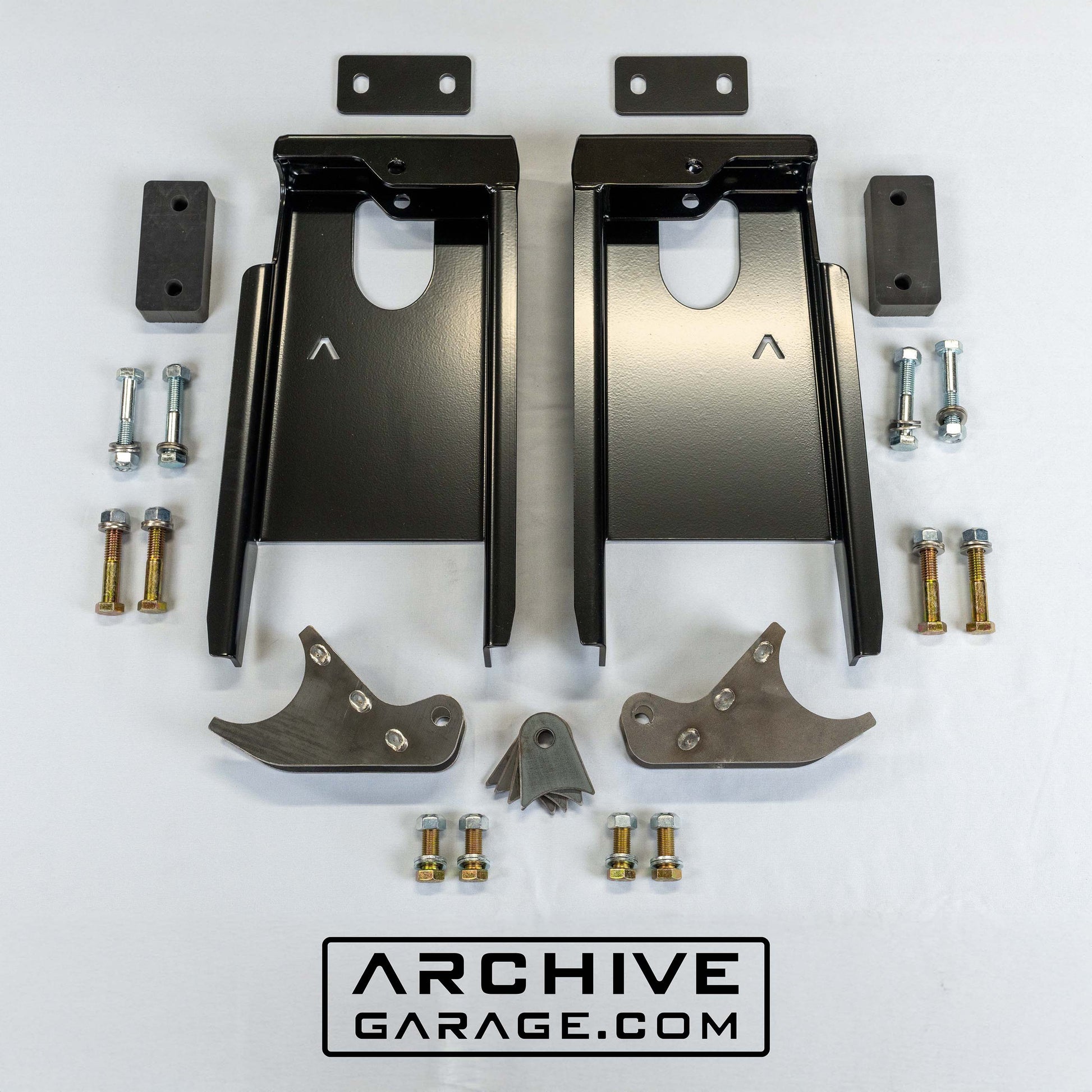

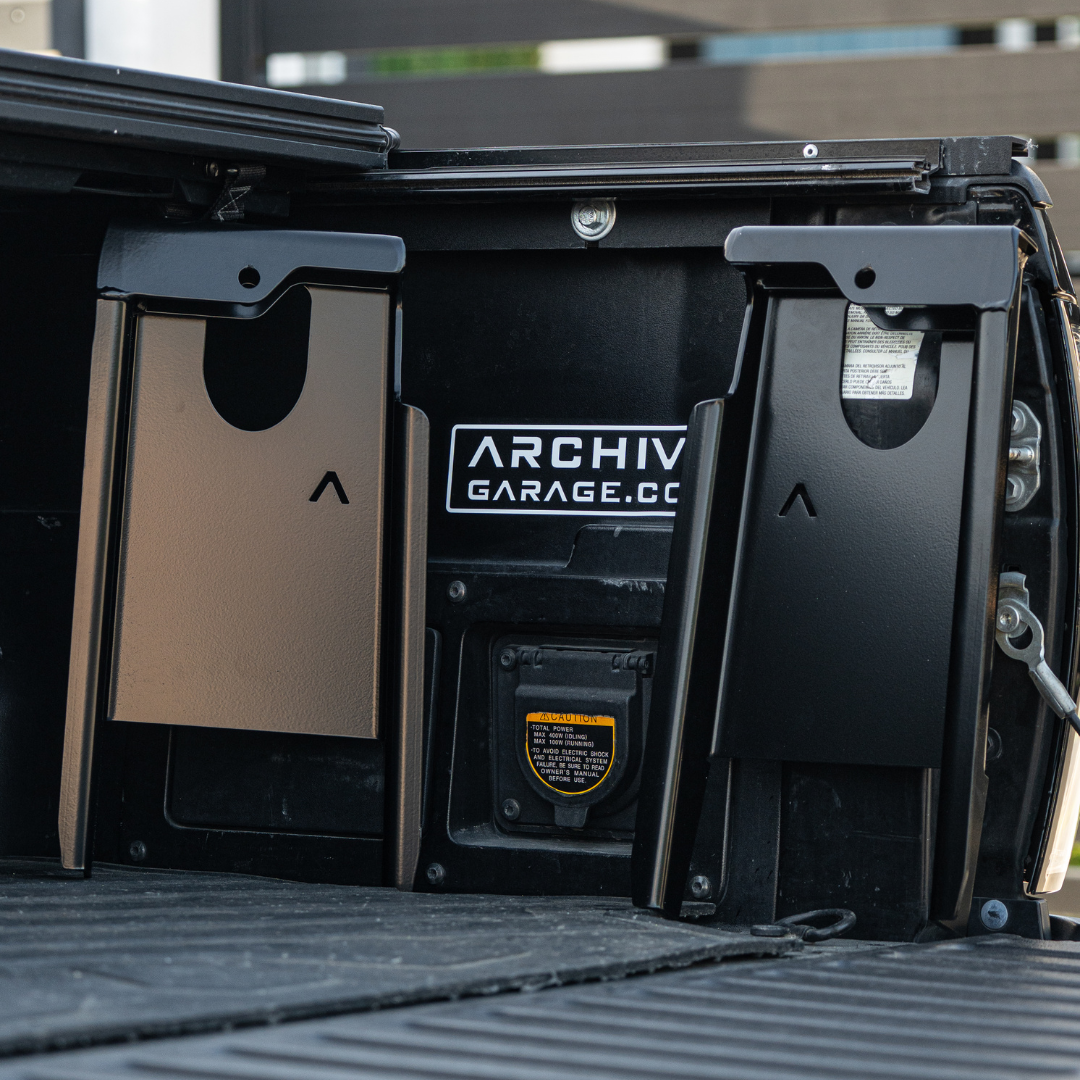

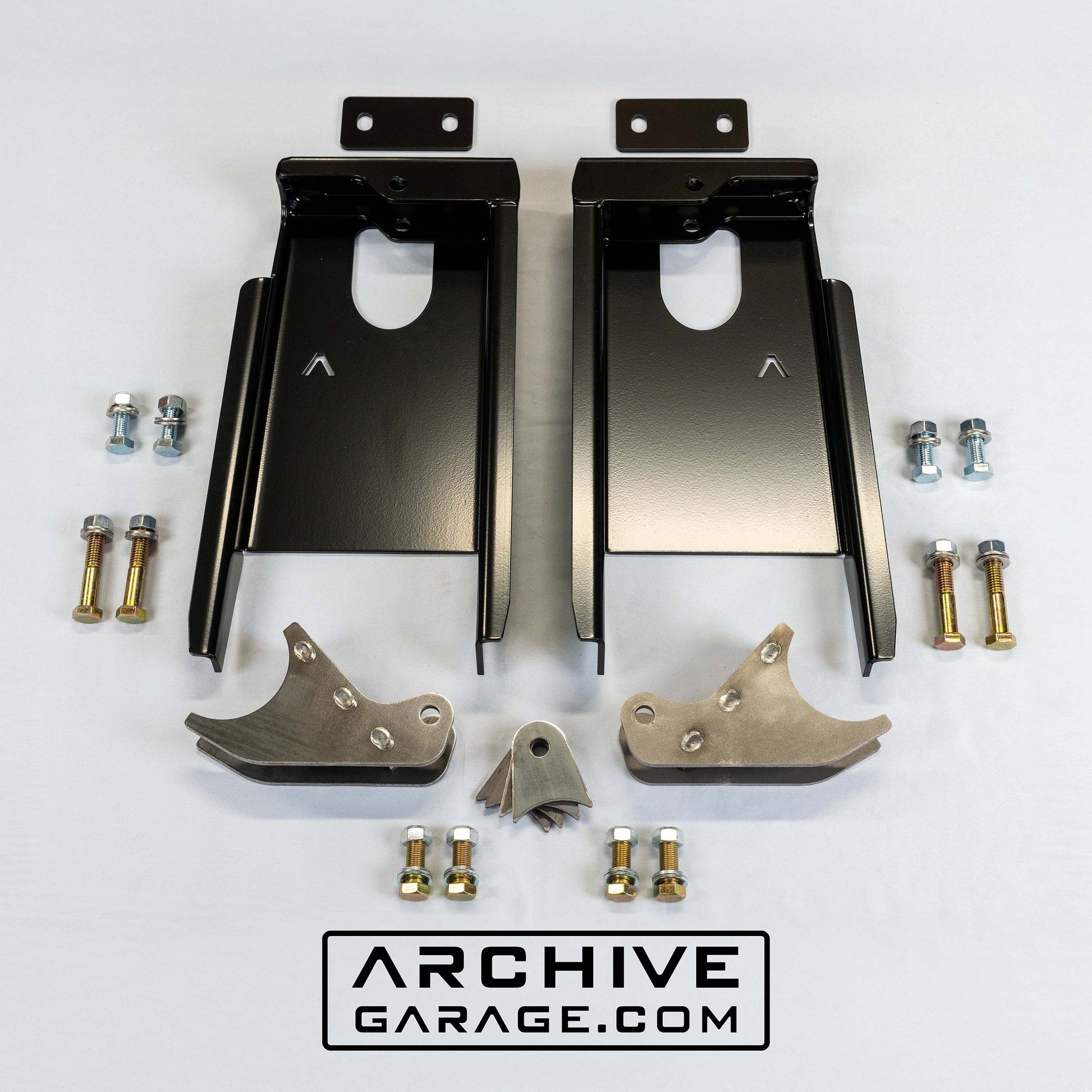

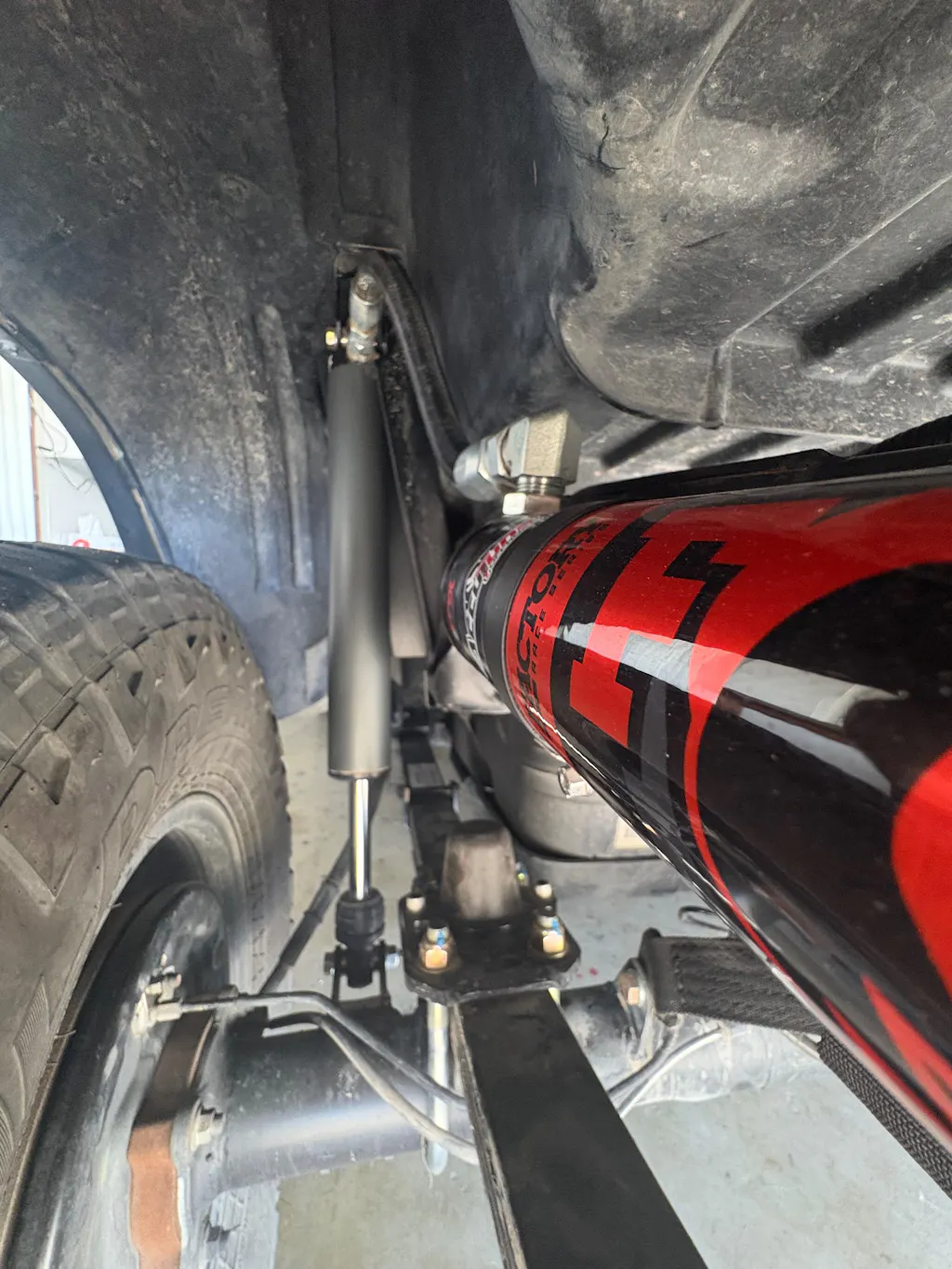

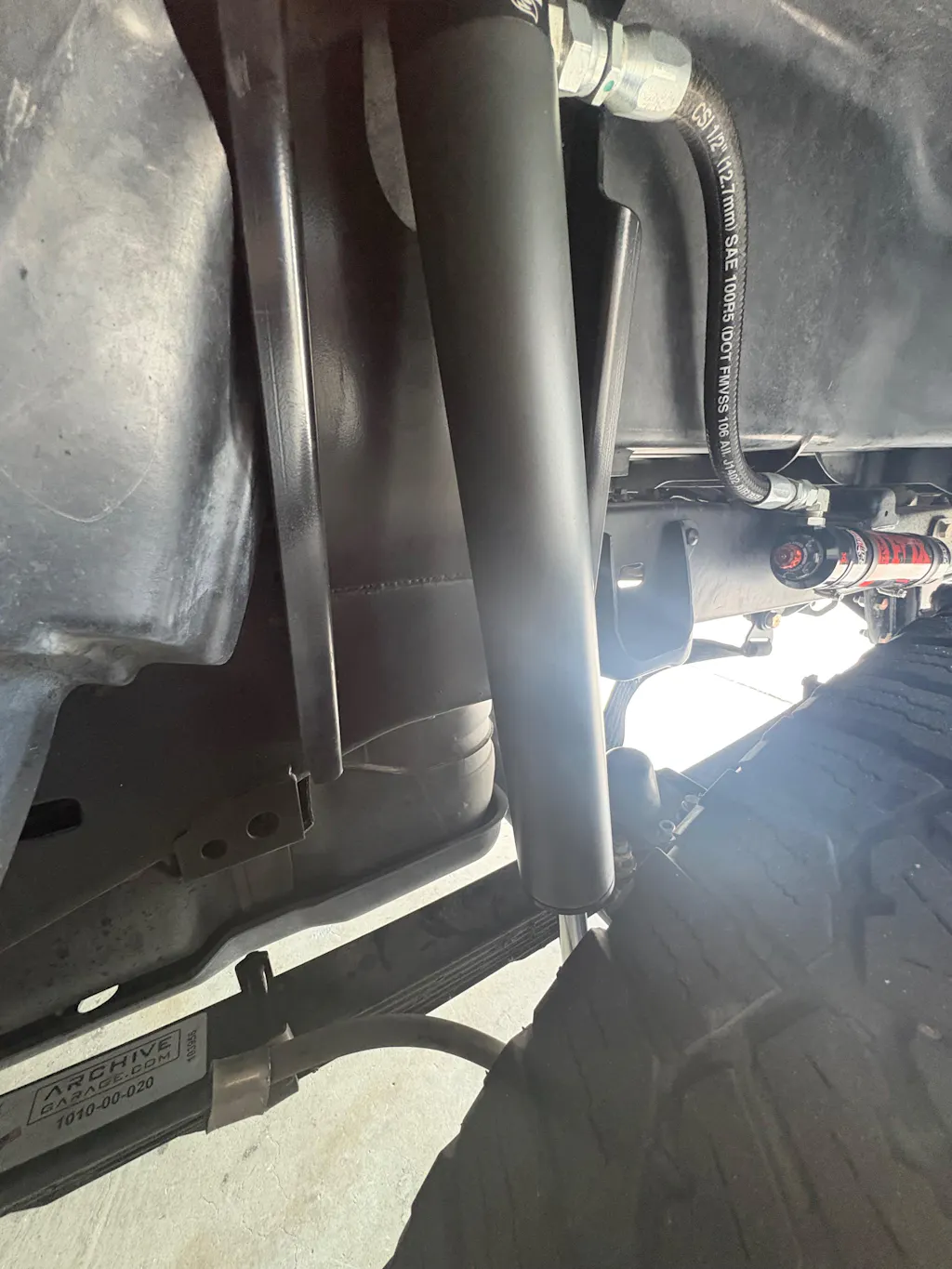

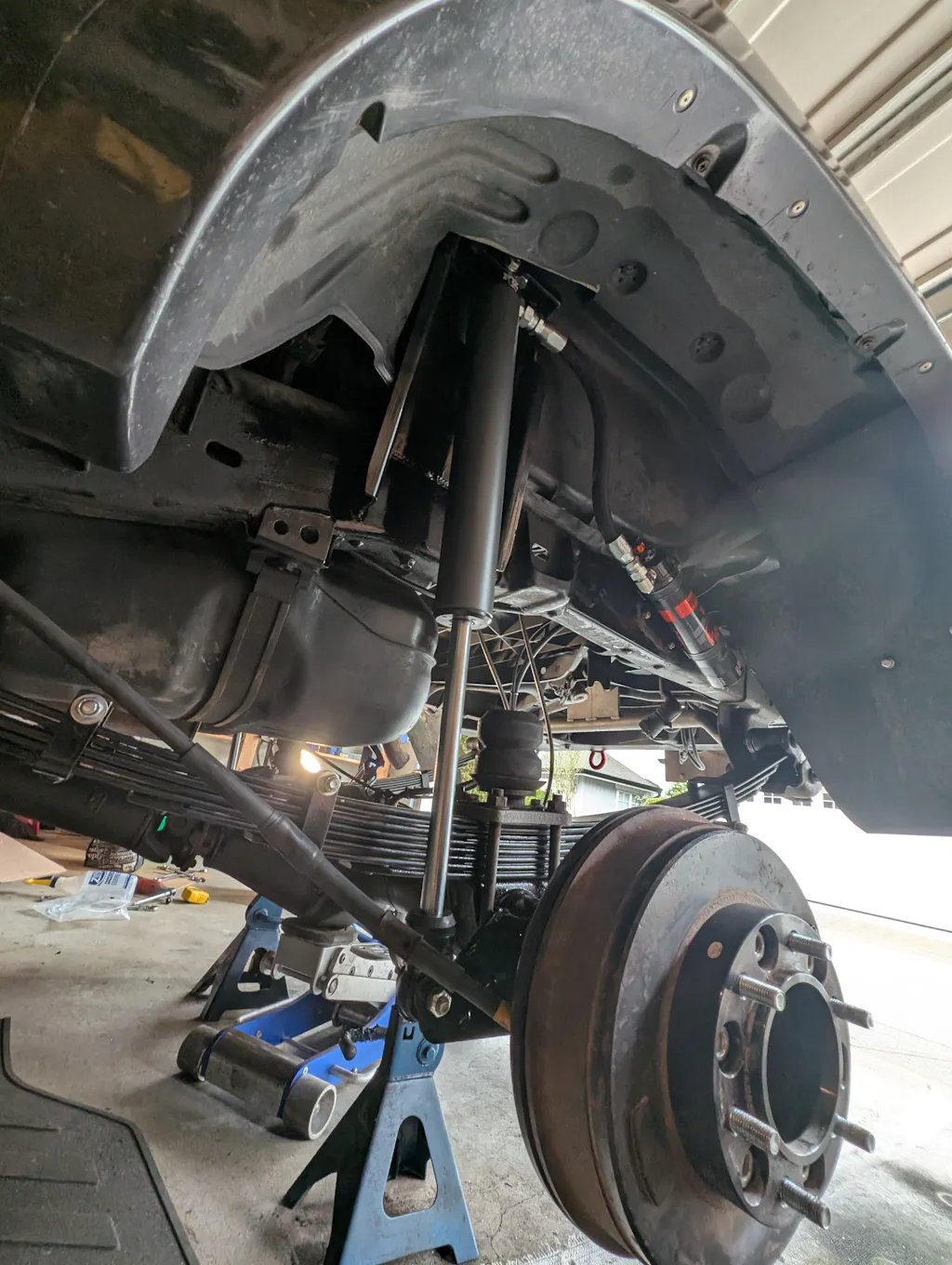

Archive introduced the original 2.5" kit to mount 2.5" X 12" to 2.5" X 14" travel shocks without cutting the bed. This "under bed" kit allows bolting to bed for less frame stress than other kits, which also allows a crossbar to be fit to lock out the frame rails from rotating inward.

Laser cut from 3/16" HSLA 50,000 psi steel, CNC brake-formed towers for toughness.  Towers are blasted and powder primed for better corrosion resistance in wintery conditions. Axle tabs (included) are 1/4" HSLA for severe use and rock crawling.

Reference Product Fitment Notes for shock, wheel fitment and install info.



Product Fitment Notes

2005-2023 Tacoma DC/SB
Leaf Pack Estimated Lift Amount AG Leafs Axle-Tube-to-Frame-Bottom
Stock 3/1-stock weight 0in 8.25in
Archive MD - 0lbs 3.25in 11.5in
Archive MD - 300lbs 2.5in 10.75in
Archive MD - 600lbs 2in 10.25in
Archive HD - 600lbs 3in 11.25in
Archive HD - 1250lbs 2in 10.25in
Archive XD - 1250lbs 3in 11.25in
Archive XD - 1750lbs 2.5in 10.75in
*Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR.  The vehicle owner assumes all risk when exceeding Toyota's GVWR or GAWR.

Recommended Shocks (Confirmed Fit & Performance)

Shock Brand Part Number
Accutune Fox Factory RR 2.5x12 Fox 980-02-102
Accutune Fox Factory RR 2.5x14 Fox 980-02-103
AccuTune Fox Factory RR DSC 2.5x12 Fox 980-06-102-SRT
AccuTune Fox Factory RR DSC 2.5x14 Fox 980-06-103-SRT
AccuTune King RR 2.5x12 King King PR2512-SS
AccuTune King RR 2.5x14 King King PR2514-SS
AccuTune King RR 2.5x12 w/ adjuster   King King PR2512-SS-A
AccuTune King RR 2.5x14 w/ adjuster King  King PR2514-SS-A
ADS Smooth Body 2.5x12 ADS 250-SBR12-W00
ADS Smooth Body 2.5x12 w/adjuster ADS 250-SBR12-WA0
*If using HD Springs or XD 12in is best
*For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel Fittings/Spacers
12-14in Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer or Equivlent Out Board
Offset Visualizer App



Shipping

Free shipping to 48 states. AK, HI, Canada extra

View full details

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Andy

Super impressed with the quality and craftsmanship of this piece! Easy and straight forward to install, came with all necessary hardware and looks to be able to take a lot of abuse! I will definitely use this piece on another 1st gen build!!

A
Adam

Well, taken me awhile to get around to typing this up but thought I'd throw a little review up for Eric's shock relocate for the tacomas.

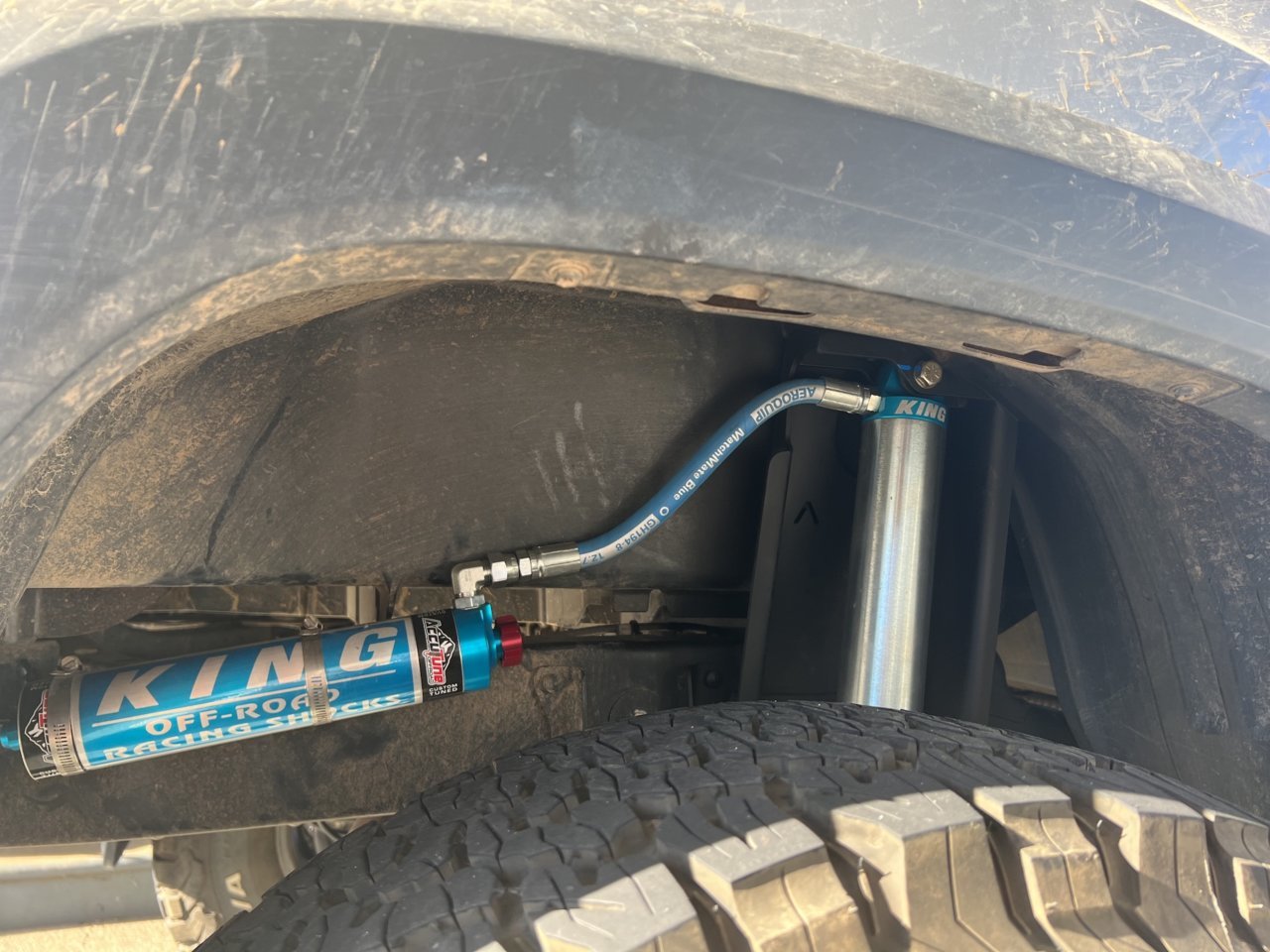

I was part of the original batch made about 6 months ago so had plenty of time to test it out. It's been combined with two different front suspensions and been through quite a variety of conditions. As the setup currently sits however, the rear is the shock relocate with 14" King adjustable resis and a modified OME Dakar pack also with Archive shackle flip paired to a baja kits LT front.

Concerning the install I personally did not do it. With the amount of welding required for the towers and the mount tabs I had a shop do it that does fab work. According to them install was very straightforward and everything lined up perfectly. I also had them go ahead and do the bed crossbar for support or which they did a chromoly bar with heim ends to allow the mounts to flex with the frame. The only figment issue I ran into was actually a hair of rubbing on tires. When the rear flexes out the tires rub the shocks slightly. Something to watch for... I have SCS Stealth 6's 17x9 with -35BS and 285/70/R17 for reference.

The performance has been exceptional so far. Mounts haven't budged and have taken some serious abuse both through prerunning and crawling and general abuse. Haven't fully gotten to get the use of the extended shocks yet as I'm waiting on the money to go to deavers and my leaf pack is limiting currently but I did gain travel already from stock location shocks and am very impressed. Between this and the shackle flip the amount of increased travel and gained droop is more than noticeable. Unfortunately haven't taken measurements for before and after but it is quite a bit even with the current leaves.

Very happy with all of Eric's products I have and he has been super helpful answering questions and helping decide on variations of his products. Would recommend him to anyone. Looking to get some more of his stuff here soon.

Thanks again Eric!

C
Classys G.

These are top of the line, well built and purpose driven relocation towers, with tons of abuse off road by many Tacoma owners. Who doesn't want more flex and sexy ass parts. I could not be happier with how these function and look. Put your order in toady, you will not be disappointed.
