STEALTH HD GM U-BOLT FLIP KIT - 2015-2022 COLORADO CANYON
STEALTH HD GM U-BOLT FLIP KIT - 2015-2022 COLORADO CANYON
Low stock
Share
MADE IN USA!!

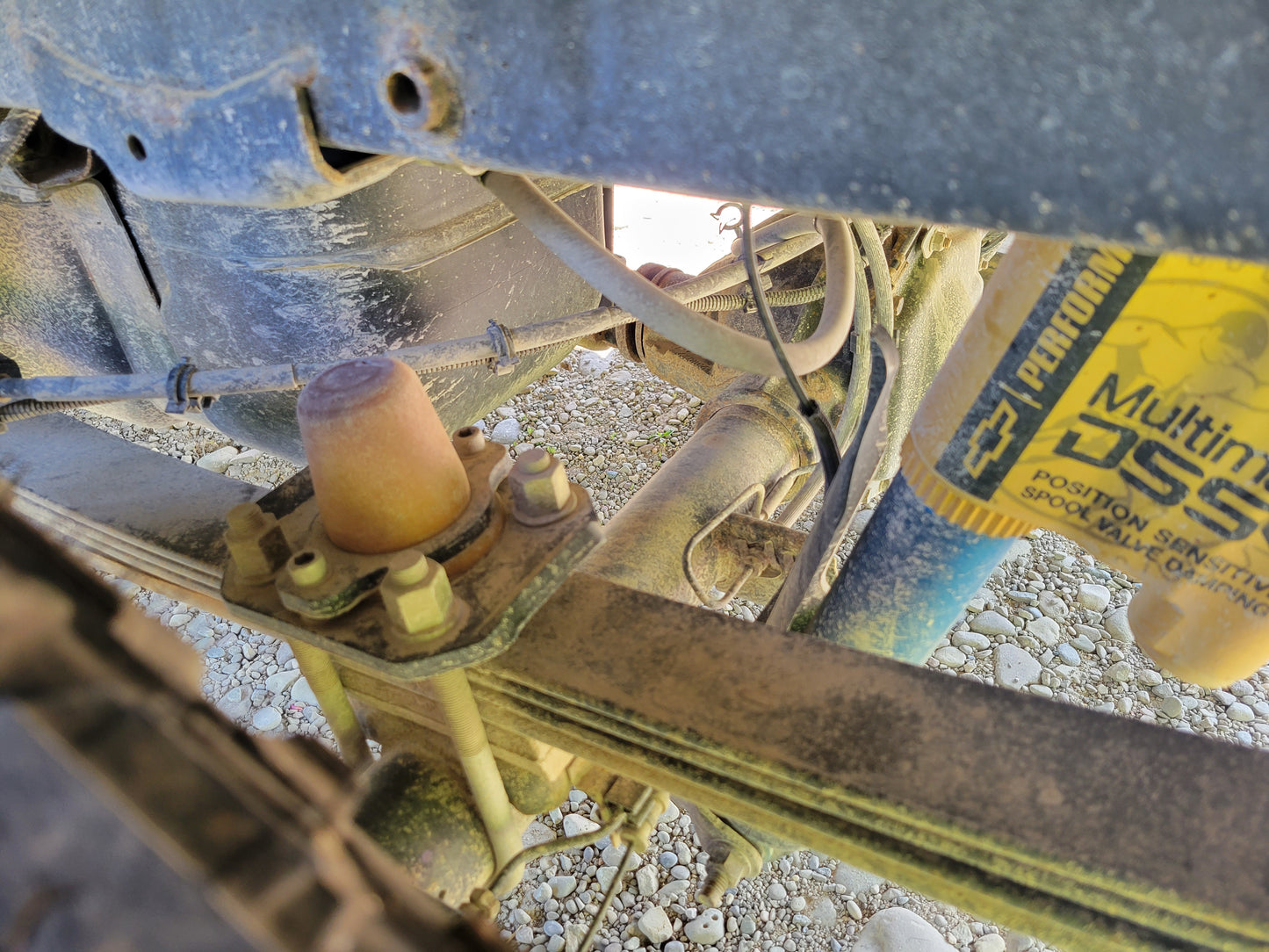

Archive's Stealth HD U-bolt flip kit designed to fit tight to 2.5" wide springs. U-bolts are kept tight to pack to prevent your leaves from rotating out of alignment.
This kit allows you to remove bumpstops without removing the U-bolts, U-bolt plates and repeating torque sequence.
If you buy this kit, email us for a discount when you need replacement U-bolts
Option 3 & 4 Archive Speed bumps are 100% designed by us for:
1) soft engagement
2) max bump travel
3) slowing weight down over more distance for progressive feel
4) no center hole in bump to fill up with water
5) two tough 3/8" bolts to hold bumpstops down.
(note: yellow color fades to amber over time)
6) High strength Steel (30% stronger than competition)
Note: Spring center bolt threads must be trimmed to a max height of 1/2" above the spring
Kit includes:
(2) HD powder coated U-bolt plates w/ kick out for air bumps, made from high strength HSLA 50ksi steel (30% stronger than mild/A36).
(4) HD 9/16" round U-bolts (3 1/4" x 8 1/2"), Clamps leaf packs up to 3.5" thick (Trim to fit)
Product Fitment Notes
Product Fitment Notes

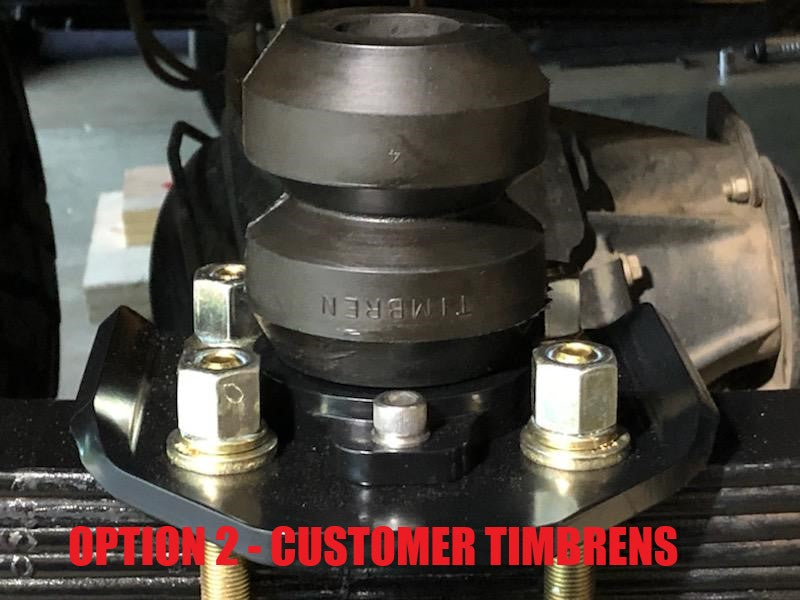

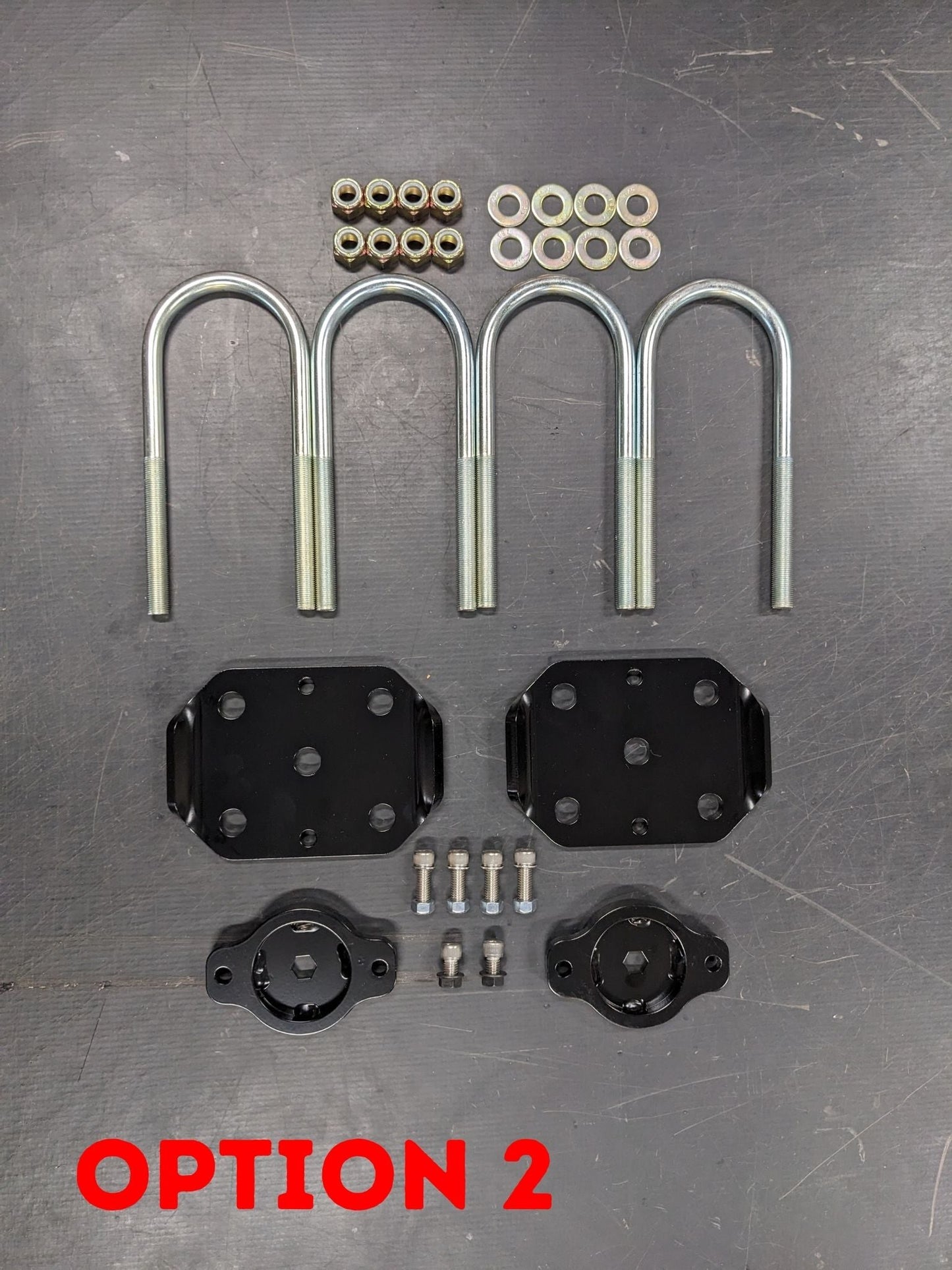

-Option 2: LowPro Pedestal (only 5/8" tall) for thread in bumpstop, with 3/8-16 female thread, without bumpstops (customer-supplied Super Bumps or Timbrens)

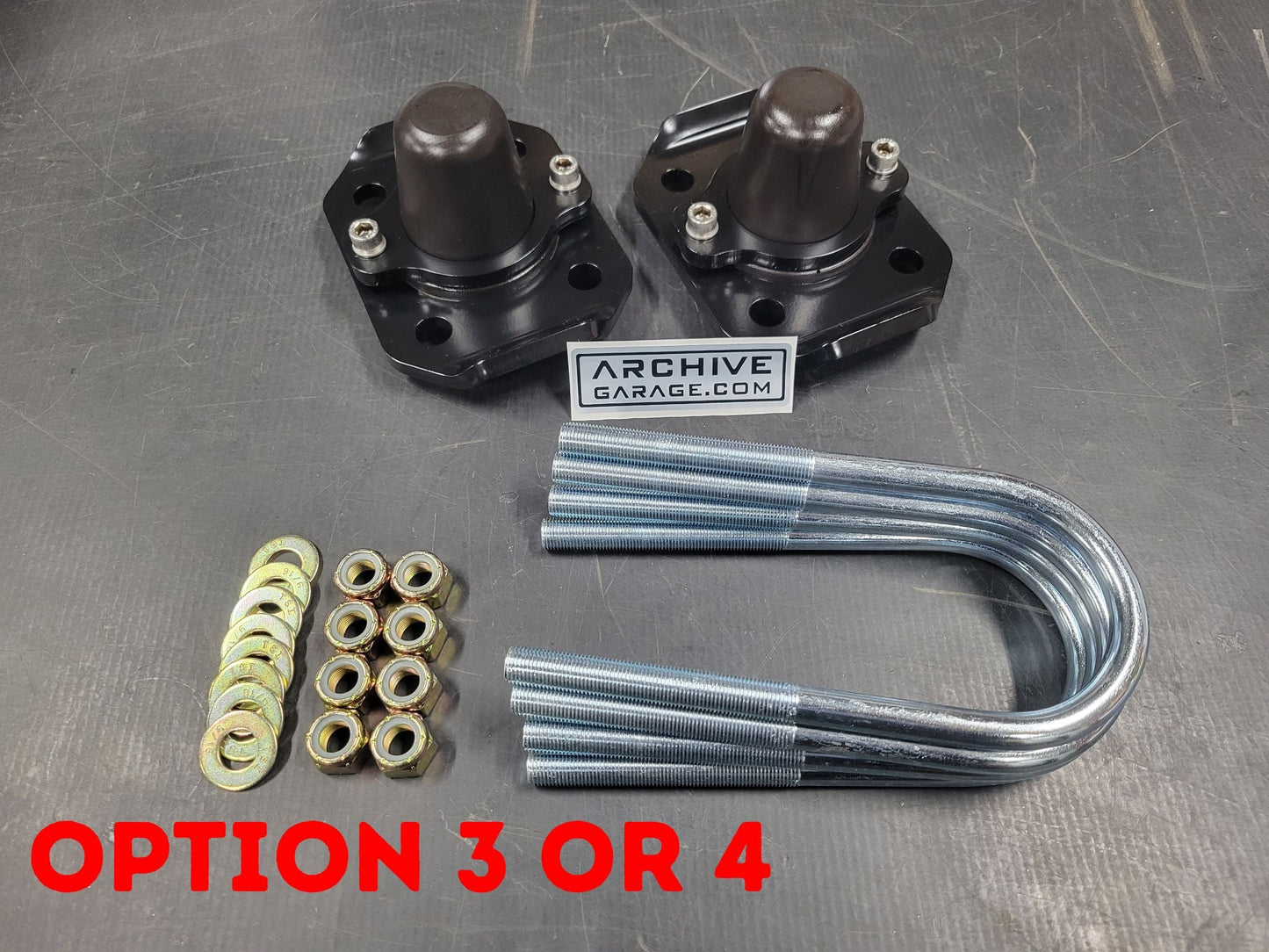

-Option 3: Archive Speed bumps- Standard Density w/ hold-down ring (Colorados up to 1,500 lbs added to axle)
-Option 4: Archive Speed bumps- High Density w/ hold-down ring (Colorados over 1,500 lbs added to axle)
Shipping
Shipping
Free Priority shipping, in all 50 States. (PR and Guam Free but ~1 week)
$55 USD extra shipping to Canada
